For A Customized Quote, Select Part(s) Below:

Male/Female to Female General



Male Taper to Female Taper    (Detailed Part Description)

Male Taper Female Taper
RWMA Taper Minor Dia. Dia. at 1/2" RWMA Taper Major Dia. Part #
#5 0.588 0.613 #4 0.463 18-741
#7 0.819 0.844 #5 0.613 18-742
#6 0.706 0.731 #5 0.613 18-7414
#4 0.438 0.463 #5 0.613 18-7415
#5 0.588 0.613 #6 0.731 18-7416



Male Pipe Thread to Female Taper    (Detailed Part Description)

Male Thread Female Taper
Size RWMA Taper Major Dia. Part #
1/2-14 pipe #4 0.463 18-746-07
1/2-14 pipe #5 0.613 18-747-07
1/2-14 pipe #5 0.613 18-7465-07
5/8-14 pipe #4 0.463 18-748-06
5/8-14 pipe #5 0.613 18-749-06
3/4-14 pipe #4 0.463 18-756-09
3/4-14 pipe #5 0.613 18-757-09
3/4-14 pipe #6 0.731 18-7576-09



Male Thread to Female Taper    (Detailed Part Description)

Male Thread Female Taper   Sealing Ring
Size RWMA Taper Major Dia. Dia. or Hex Part # Part #
5/8-18 #4 0.463 7/8 Hex 18-750 18-10060-11
5/8-18 #5 0.613 1 Hex 18-751
Size RWMA Taper Major Dia. Dia. or Hex Part # Part #
3/4-10 #5 0.613 1 Dia. with 3/4" Wrench Flats 18-755 18-10060-12
Size RWMA Taper Major Dia. Dia. or Hex Part # Part #
7/8-14 #4 0.463 1 Hex 18-770 18-76460
7/8-14 #5 0.613 1 Hex 18-771
Size RWMA Taper Major Dia. Dia. or Hex Part # Part #
1-14 5/8-18 THD -- 1 1/4 Hex 18-7743 18-10060-17
1-14 #4 0.463 1 1/4 Hex 18-785
1-14 #5 0.613 1 1/4 Hex 18-786
1-14 #6 0.731 1 1/4 Hex 18-7863
1-14 #7 0.844 1 1/4 Hex 18-787
1-14 #5 0.613 1 1/4 Dia. 18-7875
1-14 #6 0.731 1 1/4 Dia. 18-7876



Female Thread to Female Taper    (Detailed Part Description)

Female Taper 5/8-18 Female Thread Size 3/4-10 Female Thread Size
RWMA Taper Major Dia. Part # Part #
#4 0.463 18-753 18-7591
$5 0.613 18-754 18-7592
Return to the Adapter Index and select additional adapters.



Male to Female Specialty

90° Adapter Angle    (Detailed Part Description)

Male Thread Female Taper
Thread Size Length RWMA Taper Major Diameter Part #
7/8-14 9/16 #4 0.463 18-764
7/8-14 9/16 #5 0.625 18-766
1-14 3/4 #5 0.625 18-780
1-14 3/4 #7 0.875 18-782



Adapter w/Insert    (Detailed Part Description)

Adapter Angle Male Thread Female RWMA Taper #5 Female RWMA Taper #6
  Thread Size Length Part # Part #
90° 1-14 3/4 18-7805 18-7806
30° 1-14 3/4 18-7815 18-7816



30° Adapter Angle    (Detailed Part Description)

Male Thread Female Taper
Thread Size Length RWMA Taper Major Diameter Part #
7/8-14 9/16 #4 0.463 18-765
7/8-14 9/16 #5 0.625 18-767
1-14 3/4 #5 0.625 18-781
1-14 3/4 #7 0.875 18-783



Straight Clamping Type    (Detailed Part Description)

Male Thread Female Taper
Thread Size Length RWMA Taper Major Diameter Part #
7/8-14 9/16 #5 0.625 18-768
1-14 3/4 #5 0.625 18-784
Return to the Adapter Index and select additional adapters.



800 Series Nu-Twist®

Surface Mounted    (Detailed Part Description)

Adapter Bases are CMW®3 Material
Size Screw (2 required) Part #
Number 1 No. 10-24 SCR. 18-801
Number 2 No. 1/4-20 SCR. 18-802
Number 4 No. 1/4-20 SCR. 18-804



    Threaded    (Detailed Part Description)

Adapter Bases are CMW®3 Material
Size Thread Part #
Number 1 5/8 to 18 18-811
Number 2 1 to 14 18-812
Number 4 1 1/2 to 12 18-814
Return to the Adapter Index and select additional adapters.



    Multi-Spot Welder Electrode Adapter    (Detailed Part Description)

Attachment Diameter Major Taper Part #
1/2-14 NPT -- 18-1201
5RW Male Cap 0.4145 18-1202
RWMA Taper #4 0.463 18-1203
RWMA Taper #5 0.625 18-1204
Return to the Adapter Index and select additional adapters.

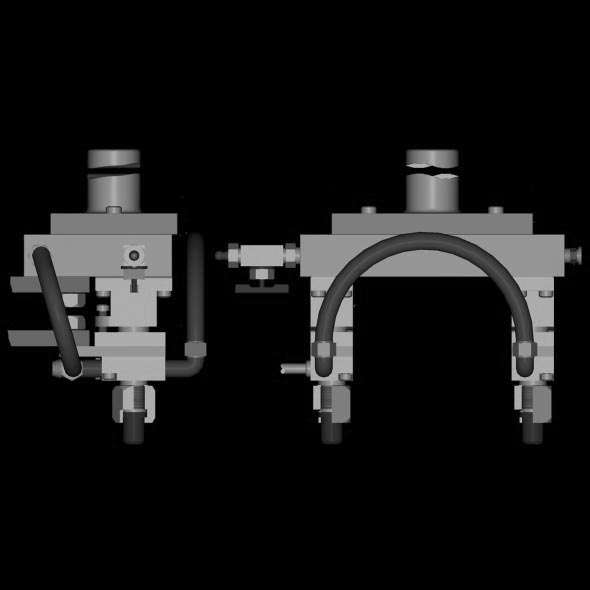

Hydraulic Equalizing Adapter    (Detailed Part Description)

Unit Size Electrode Attachment Height Mean Height Includes Adapter# Part #
#1 Nu-Twist® 1 1/4 1 43/64 -- 18-826
#2 Nu-Twist® 1 13/16 1 49/64 -- 18-827
#1 1/2-14 Pipe Thread 1 1/2 1 43/64 -- 18-82650
#1 with Adapters RWMA #5 Male Cap -- 1 43/64 18-7465-07 18-82651
#1 with Adapters RWMA Taper #4 -- 1 43/64 18-746-07 18-82652
#1 with Adapters RWMA Taper #5 -- 1 43/64 18-747-07 18-82653

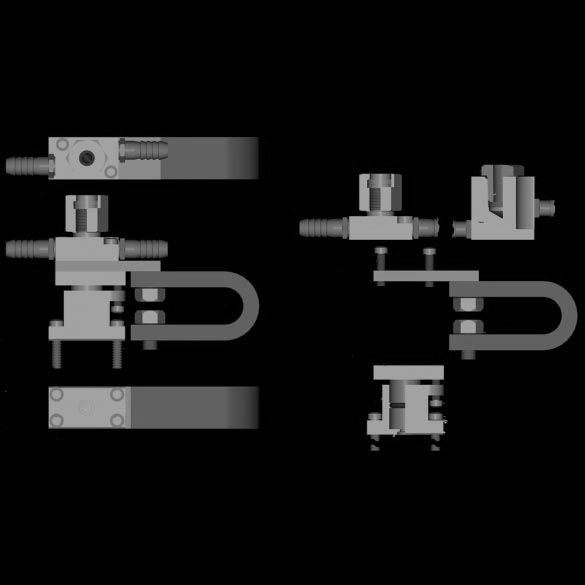

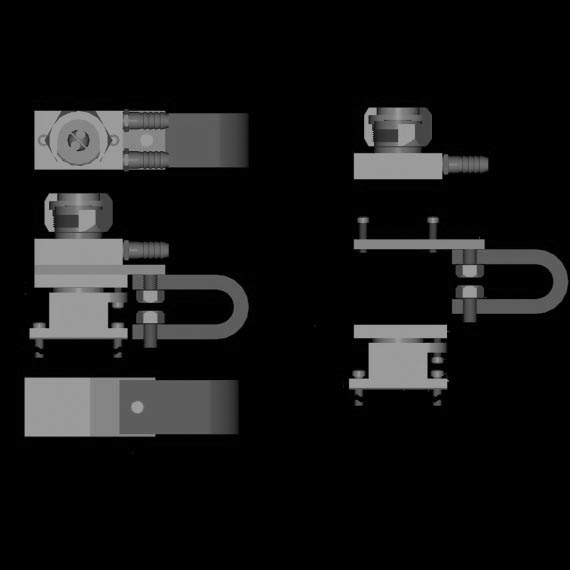

Hydraulic Equalizing Assemblies    (Detailed Part Description)

Unit Size Mounting 'T' Diameter Part # Spacing*
1 None 18-846 1 1/32" to 5"
1 1" 18-84601-01 *Specify On Order in the Comments Field
1 1 1/4" 18-84601-02
1 1 1/2" 18-84601-03
Unit Size Mounting 'T' Diameter Part # Spacing*
2 None 18-847 1 3/4" to 6"
2 1" 18-84701-01 *Specify On Order in the Comments Field
2 1 1/4" 18-84701-02
2 1 1/2" 18-84701-03
Return to the Adapter Index and select additional adapters.
