Resistance Soldering > Desoldering Braid

Desoldering is quick & clean with Dri-Wick.
Dri-Wick desoldering braid simplifies the desoldering of PC board components, posts, pots, flags, thru hole connections, pads and traces, as well as many non-PC board applications. Specially-formulated copper braid, treated with "water-white rosin" flux or "no-clean" flux, is heat activated with a soldering iron to produce strong capillary action. This combination of forces quickly melts and draws solder into the braid, leaving a clean, tinned surface, free of excess solder and ready for rework. Dri-Wick and an iron is a complete system that requires no vacuum: an effective, inexpensive and portable alternative for solder removal.

Our Desoldering Braid is available in the following forms:

  • Standard Rosin Flux Formula on spools
  • Disposable Desoldering Braid Dispensers
  • Reusable, Dispenser with Integrated Cutting Mechanism

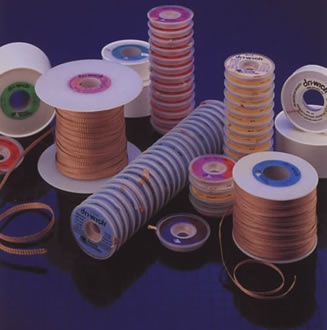

Dri-Wick Desoldering Braid
SIZE APPLICATION WIDTH SIZE PAD SIZE
1 Micro & integrated circuits .025" (.63 mm) .060" & smaller (1.52 mm & smaller)
2 Miniature PC Boards .050" (1.27 mm) .060" to .125" (1.52 to 3.18 mm)
3 Standard PC Boards .075 (1.91 mm) .125" to .190" (3.18 to 4.83 mm)
4 Commercial PC Boards and connectors; phone connectors .095" (2.41 mm) .190" & larger (4.83 mm & larger)
5 Miniature circuit boards, turret terminals, etc. .130" (3.30 mm)
Available in the following lengths:
  • Five-foot spools sold in a sleeve of 25; Model 484 - (Width Size)
  • 50 foot spools; Model 484 - (Width Size) L.

Dri-Wick Desoldering Braid Dispensers
MODEL DESCRIPTION
Model 485-8C Dri-Wick Economy Dispenser
Model 482-WG Xuron Wickgun from ATI
Model 482-WG1 Wickgun Pre-Loaded with Dri-Wick
Size No. 1 (.025") 15' Length
Model 482-WG2 Wickgun Pre-Loaded with Dri-Wick
Size No. 2 (.050") 15' Length
Model 482-WG3 Wickgun Pre-Loaded with Dri-Wick
Size No. 3 (.075") 15' Length
Model 482-WG4 Wickgun Pre-Loaded with Dri-Wick
Size No. 4 (.095") 15' Length
Model 483-1XC Wickgun Cassette, Dri-Wick
Size No. 1 (.025") 15' Length
Model 483-2XC Wickgun Cassette, Dri-Wick
Size No. 2 (.050") 15' Length
Model 483-3XC Wickgun Cassette, Dri-Wick
Size No. 3 (.075") 15' Length
Model 483-4XC Wickgun Cassette, Dri-Wick
Size No. 4 (.095") 15' Length
