High-Accuracy Weld Force Gauges Available from Tuffaloy

We offer one of the broadest product lines available today.

Tuffaloy supplies a broad range of weld force gauges, available with accuracies from 0.5% for Digital-Electronic gauges; to 1% accuracy for the Digital-Hydraulic which has a digitl output driven by hydraulics; to our Standard Hydraulic models with 2%-3% accuracy. All are available in English and metric readouts.

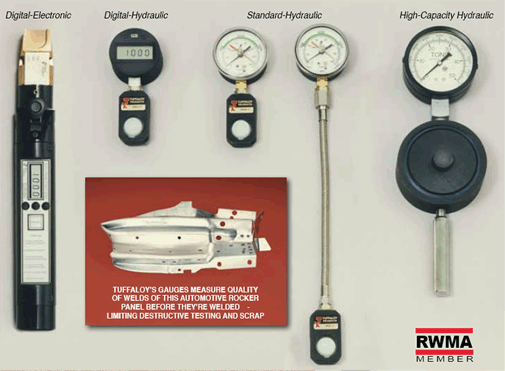

Our Digital-Electronic gauge supplies the highest accuracy (0.5% for 95% of the gauges range). The gauges has large LCD readouts with peak-hold capabilities and has field selectable outputs. This unit comes with a 5-foot extension for ease of use. All functions are electronic which prevents variations caused by flexing. A Digital-Electronic unit without the flex cable is also available.   The Digital-Hydraulic delivers beter accuracy than standard hydraulic gauges but at a lower price than all-digital models. The peak-hold feature allows for reading variable forces, which are common in resistance welding machinery. Gauges maintain an accuracy of 1% for 30% to 90% of the gauge's range.   Tuffaloy's Standard Hydraulic gauges are the low cost method for obtaining general force measurements. The gauges are available in a standard block style, with extensions. Sizes range from 300 lb up to 20 tons with accuracy of 2% at the mean and 3% outside of mean for 70% of the gauge's range.

Standard Gauge Data
Description Maximum Reading Increment Every Opening Required Extension Length Features Item Number
Digital-Electronic Weld Probe 0-2500 lbs/
0-1133 Kg

0-5000 lbs/0-2266Kg		 1 lb/
1 Kg

5 lbs/
5 Kg		 1/2"

7/8"		 5 Feet Cable
  • User selectable Englich or Metric units
  • NIST traceable certification
  • Field selectable auto-shut-down battery saver
  • No-weld setting not required
  • Accuracy 0.5% full scale
 601-8025HDI

601-8050HDI
Digital-Electronic Weld Probe - (Without Extension) 0-2500 lbs
0-5000 lbs
0-1133 Kg
0-2266 Kg		 1 lb
5 lb
1 Kg
5 Kg		 1/2"
7/8"
1/2"
7/8"		 -
  • NIST traceable certification
  • Auto-shut-down 4 minute battery saver
  • Requires no-weld setting use
  • Accuracy 1.0% full-scale
  • Best price / performance ratio
 601-8025HD
601-8050HD
601-8113HD
601-8226HD
Digital-Hydraulic* 0-1361
0-3000
0-5000
0-10000
0-3000		 1 Kg
1 lb
1 lb
1 lb
1 lb
 3/4"
3/4"
3/4"
3/4"
3/4"
 -
-
-
-
12"
  • Accuracy 2%
  • NIST traceable certification
 601-1361D
601-3000D
601-5000D
601-9999D
601-3000D-125
Standard Hydraulic* 0-1000
0-2000
0-2000
0-3000
0-3000
0-5000
0-6000
0-6000
0-10000		 20 lb
50 lb
50 lb
20 lb
20 lb
100 lb
50 lb
50 lb
100 lb		 3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4		 -
-
12"
-
12"
-
-
18"
-
  • Dual Reading, lbs and Kg
  • Accuracy 3%
 601-8010
601-8020
601-8020-12
601-8030
601-8030-12
601-5000
601-6000
601-8100
High-Capacity Hydraulic* 0-20000
0-40000		 50 lb
100 lb		 1-3/4" -
-
  • Metric equivalent available
 601-20000
601-40000
* Hydraulic gauges should be used near mid range.

PROTECTIVE GAGE BOX AVAILABLE FOR STANDARD AND DIGITAL HYDRAULIC GAGES FROM 10,000 LBS DOWN, ITEM NO. 601-8019
