5RW STUD ELECTRODES

This series of Stud Electrodes are made from RWMA Class 2 material with Tuffaloy's 10W (copper tungsten) on the weld face and wrench flats for easy removal from holders. The Insulator is made to withstand the constant friction that is applied as the stud is inserted and removed.

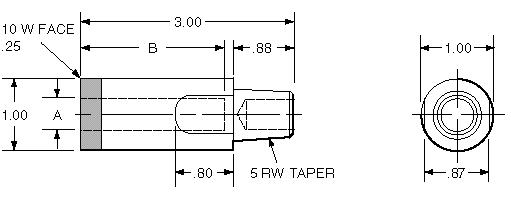

INSULATOR PART NUMBER
INSIDE DIAMETER

A

LENGTH

B

.218

.243

.256

.319

.381

.400

1" 0316-4032

0316-40062

0316-4042

0316-4052

0316-4062

0316-40102

.218

.243

.256

.319

.381

.400

2" 0316-4031

0316-4006

0316-4041

0316-4051

0316-4061

0316-4010

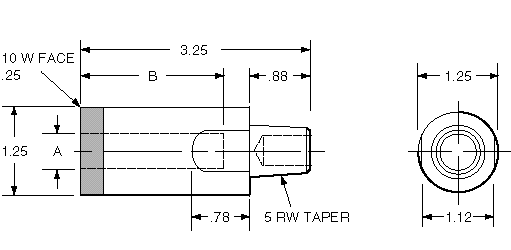

INSULATOR PART NUMBER
INSIDE DIAMETER

A

LENGTH

B

.444

.479

.506

.569

.652

.694

.777

1" 1313-4372

1313-40122

1313-4382

1313-4392

1313-4402

1313-4412

1313-4422

.444

.479

.506

.569

.652

.694

.777

2" 1313-4371

1313-4012

1313-4381

1313-4391

1313-4401

1313-4411

1313-4421

BACKUP ELECTRODES FOR UPPERS PART NUMBER
186-0316-10W
186-1313-10W
186-0311-10W
186-0313-10W
