MISCELLANEOUS TIPS

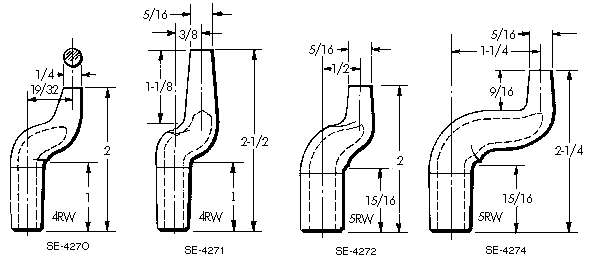

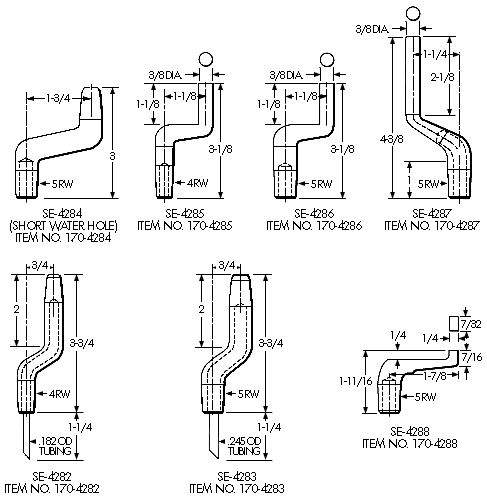

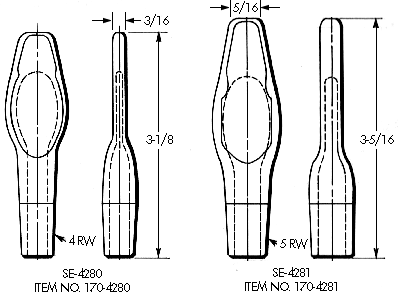

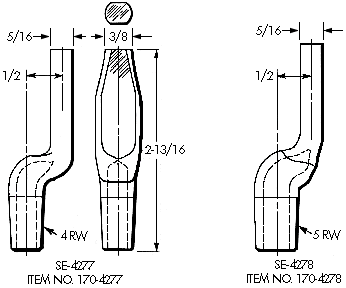

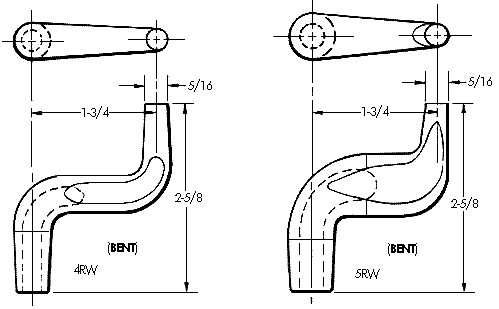

Double bend and flattened tips are made from bar stock. These are some of the standard designs available, but special designs can also be made. These are Class 2 alloy; Class 1 and Class 3 alloy can also be ordered.

SE-4089-4 (Item No. 170-4090) SE-4089-5 (Item No. 170-4089)

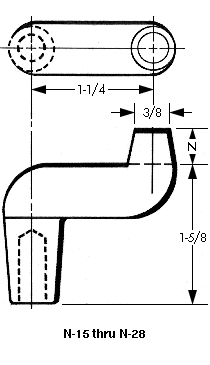

ALLOY CLASS TAPER NO. LENGTH 'N' DESCRIPTION ITEM NO.
2 4RW 3/8 N-15 186-0015
2 4RW 3/4 N-16 186-0016
2 5RW 3/8 N-27 186-0027
2 5RW 3/4 N-28 186-0028
