TUFFALOY SHUNTS AND JUMPERS

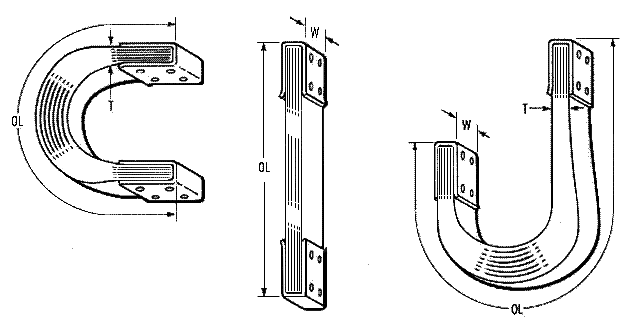

Laminated copper shunts are made to your size and shape specifications. High conductivity electrolytic ccpper strip is used, and terminal clips are riveted in place.

HOW TO ORDER

Give the following information:
Type (C, J, or F)
Outside length (OL)
Width (W)
Thickness (less clip) (T)
Hole pattern (specify by letter code)
Hole location (X, Y, Z values)
Hole diameter

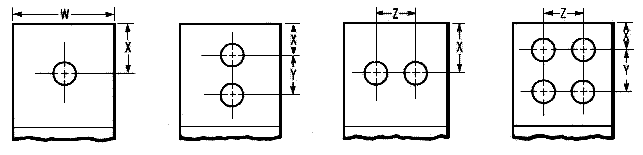

HOLE PATTERN A HOLE PATTERN B HOLE PATTERN C HOLE PATTERN D

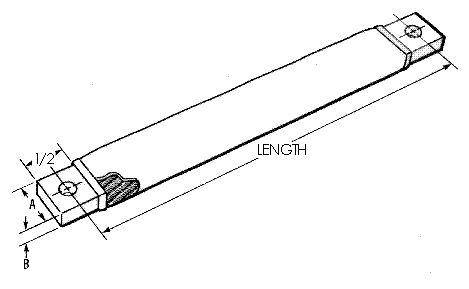

Air-cooled jumper cables are flexible, high conductivity copper conductors with insulative sleeves. They are made in lengths to suit you needs.

HOW TO ORDER

Give the following information:
Conductor rating (MCM)
Length between holes

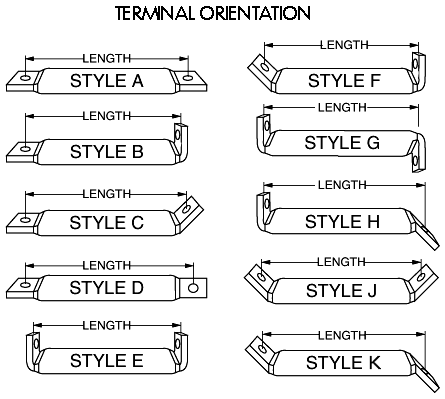

Terminal orientation style

Holes are 17/32 unless otherwise specified
MCM RATING O.D. (APPROX.) LUG WIDTH A LUG THICKNESS B
600

750

1000

1200

1500

1-1/2

1-5/8

2

2

2

1-3/8

1-3/8

1-1/2

1-1/2

1-1/2

.50

.60

.70

.82

.99
