VARIABLE OFFSET HOLDER AND STRAIGHT SHANK TIPS

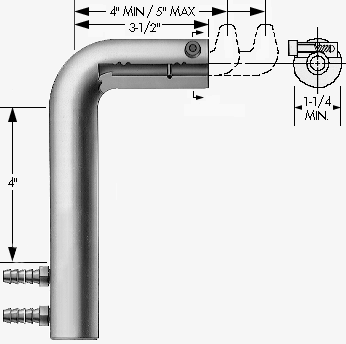

These offset holders provide a range of offset dimensions rather than one fixed amount, as with other one-piece offset holders. The top has a long shank and can be moved in or out to vary the offset anywhere between four and five inches.

The holders, all of Class 3 alloy, are made in three barrel diameters: 1, 1-1/4, and 1-1/2 inches.

The tips are positional because they have no taper: they have straight shanks, and are held in any selected position by a locking-wedge device in the holder.

Tips are made in one and two-piece designs. The one-piece tips are offered with the nose designs shown. The two-piece tips are made up by combining the shanks shown here with Tuffcap caps (normally used with No. 5 RW size Tuffcap shanks). Either male or female tips can be used, with any nose design offered (CLICK HERE). All integral tips and shanks shown here are of Class 2 alloy.

VARIABLE OFFSET HOLDERS

Shank Dia.
Description
Item No.
1 SH-7223 345-7223
1-1/4 SH-7224 345-7224
1-1/2 SH-7225 345-7225



STRAIGHT-SHANK TIPS

Type of Tip
Nose Length 'A'
Description
Item No.

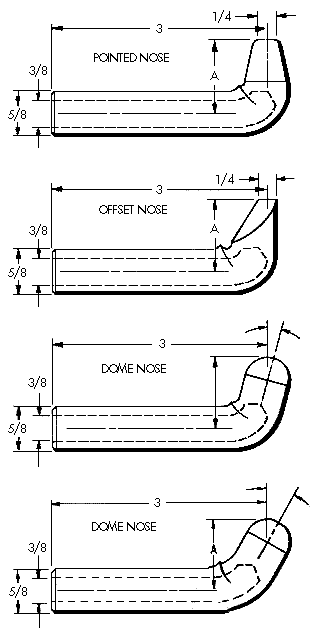

Pointed 1" SE-4408-1 170-4408
Offset 1" SE-4409-1 170-4409
15 Dome 1" SE-4410-1 170-4410
30 Dome 1" SE-4411-1 170-4411
Pointed 2" SE-4408-2 170-4418
Offset 2" SE-4409-2 170-4419
15 Dome 2" SE-4410-2 170-4420
30 Dome 2" SE-4411-2 170-4421
SE-4412
SE-4413
SE-4414
SE-4415

STRAIGHT-SHANK TUFFCAP SHANKS

Tuffcap Cap Type
Nose Length 'A'
Angle
Description
Item No.

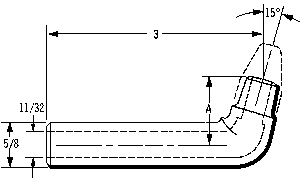

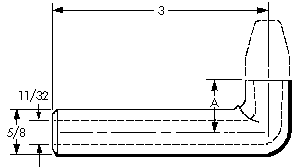

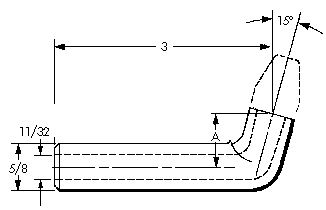

Male 3/4" 90 SE-4412 170-4422
Male 3/4" 15 SE-4413 170-4423
Female 1" 90 SE-4414 170-4424
Female 1" 15 SE-4415 170-4425
