BUILD YOUR OWN TUFFCAPS AND SHANKS

MALE CAPS

FEMALE CAPS

MALE AND FEMALE SHANKS



Build your own MALE CAP by simply choosing from the available options.

EXAMPLE: TA-14-.50

This would provide you with a Pointed tip male cap in alloy class 1 with a 4RW taper with a 1/2 inch weld face.

  T A -1 4 -.50

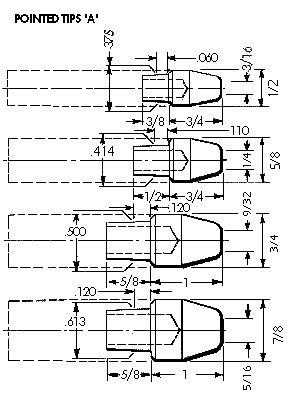

EXAMPLE DRAWING FOR REFERENCE

MALE CAP NOSE DESIGNATION RWMA ALLOY CLASS RW TAPER WELD FACE SIZE
T A=POINTED TIPS

B=DOME TIPS

C=FLAT TIPS

D=OFFSET TIPS

E=TRUNCATED TIPS

F=RADIUS TIPS

1

2

3

Z

4

5

6

7

Enter your weld face size in fraction or decimals of inches or in millimeters, limited by body size

BACK TO TOP



Build your own FEMALE CAP by simply choosing from the available options.

EXAMPLE: TP-14-C-12mm

This would provide you with a Flat tip female cap in alloy class 1 with a 4RW taper with a 12mm weld face.

EXAMPLE DRAWING FOR REFERENCE

TP -1 4 -C -12
FEMALE CAP RWMA ALLOY CLASS RW TAPER NOSE DESIGNATION WELD FACE SIZE
TP 1

2

3

Z

4

5

6

A=POINTED TIPS

B=DOME TIPS

C=FLAT TIPS

D=OFFSET TIPS

E=TRUNCATED TIPS

F=RADIUS TIPS

Enter your weld face size in fraction or decimals of inches or in millimeters, limited by body size

BACK TO TOP



Build your own SHANK by simply choosing from the available options.

EXAMPLE: TP-2411-08

This would provide you with a Straight Shank for a Female Cap, with a Shank length of 1 inch and an assembled length of 1-3/4 inches, with a RW Taper of 5RW. The offset, if desired, is added after a dash at the end of a model code.

STRAIGHT SHANK EXAMPLE DRAWING FOR REFERENCE

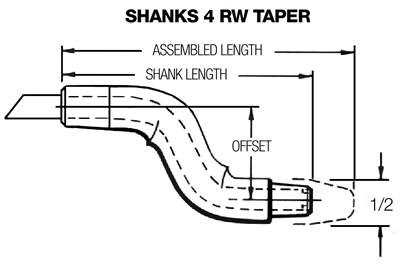

BENT SHANK EXAMPLE DRAWING FOR REFERENCE

SHANK TYPE ALLOY RW TAPER NO. SHANK LENGTH IN 1/4-INCH INCREMENTS OFFSET IN 1/16-INCH INCREMENTS
TP = MALE SHANK FOR A FEMALE CAP

TG = FEMALE SHANK FOR A MALE CAP

2 4RW

5RW

6RW

7RW

06

07

08

09

10

11

12

13

14

15

16

08

12

16

BACK TO TOP
