Spot Welding Supplies - Electrodes, Holders, and Accessories - Tuffaloy Products

TUFFCAP FEMALE CAPS

'S' CAPS

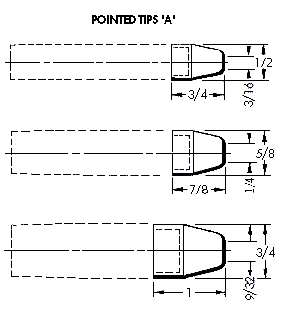

POINTED TIPS 'A'

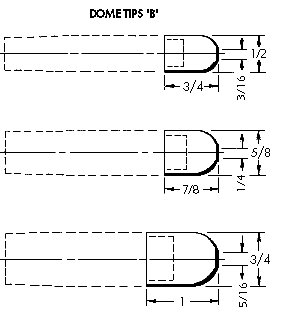

DOME TIPS 'B'

FLAT TIPS 'C'

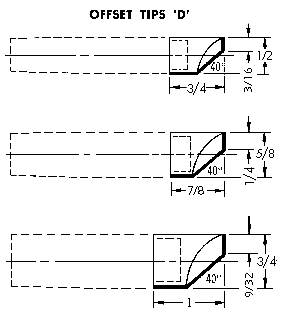

OFFSET TIPS 'D'

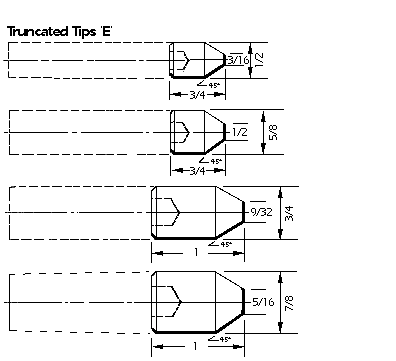

TRUNCATED TIPS 'E'

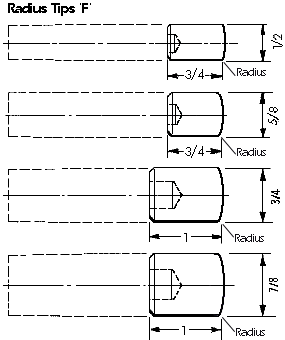

RADIUS TIPS 'F'

OR BUILD YOUR OWN

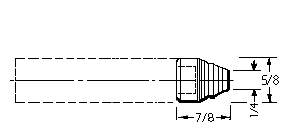

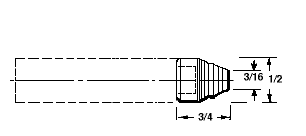

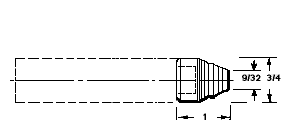

S-CAPS

 Alloy Class Taper of Adapter Shank Description Item No.

4RW

 Z 4RW TS-24-SZ 127-0241

5RW

 Z 5RW TS-25-SZ 127-0251

6RW

 Z 6RW TS-26-SZ 127-0261



Alloy Class
Taper of Adapter Shank
Description
Item No.
2 4RW TP-24A 125-0241
2 5RW TP-25A 125-0251
2 6RW TP-26A 125-0261
 Z 4RW
 TP-24-AZ
 126-0241
 Z  5RW   TP-25-AZ  126-0251
Other sizes available



2  4RW TP-24B 125-0242
2 5RW TP-25B 125-0252
2 6RW TP-26B 125-0262
 Z 5RW  TP-25-BZ 126-0252



2  4RW TP-24C 125-0243
2 5RW TP-25C 125-0253
2 6RW TP-26C 125-0263
 Z  5RW  TP-25-CZ  126-0253



2 4RW TP-24D 125-0244
2 5RW TP-25D 125-0254
2 6RW TP-26D 125-0264
  Z  5RW  TP-25-DZ  126-0254


   2 4RW TP-24-E 125-0245
 2 5RW TP-25-E 125-0255
 2 6RW TP-26-E 125-0265

NOSE RADIUS ALLOY CLASS TAPER OF ADAPTER SHANK DESCRIPTION ITEM NO.C
  2  2 4RW TP-24-F 125-0246
2  2 5RW TP-25-F 125-0256
4  2 6RW TP-26-F 125-0266
