TUFFALOY PADDLE-TYPE HOLDERS AND SOCKET-TYPE TIPS

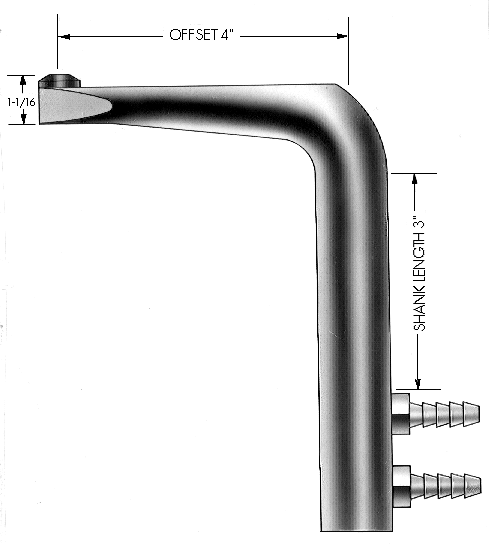

This holder is for welding in very restricted areas. It provides a very low head height and a four-inch offset. It is made in shank diameters of 3/4, 7/8, 1, and 1-1/4 inches. An adapter bushing is used to add a 1-1/2 inch dia. model to the line. Each holder comes complete with a socket-type tip (SE-3101) and holding screw. The tip may be inserted in either side of the paddle. Holders are of Class 2 alloy. Tips are available in Class 1, Class 2, Class 3 alloy or Z alloy.

Shank Dia.

Description

Item No.

3/4 P-750-490 345-0750
7/8 P-870-490 345-0870
1 P-100-490 345-1000
1-1/4 P-120-490 345-1200
1-1/2 P-150-490 345-1500
.
The four socket-type tips shown here can be used in special welding fixtures and dies as well as in the paddle-type holders

 FLAT FACED

 TRUNCATED CONE

 OFFSET

 RADIUS FACED

 Class 1 SE-3099-1  Class 1 SE-3101-1  Class 1 SE-3102-1  Class 1 SE-3110-1
 Class 2 SE-3099 Class 2 SE-3101 Class 2 SE-3102 Class 2 SE-3110
 Class 3 SE-3111 Class 3 SE-3113 Class 3 SE -3123 Class 3 SE-3133
Class Z SE-3099-Z Class Z SE-3101-Z Class Z SE-3102-Z Class Z SE-3110-Z
