TUFFALOY ACCESSORIES

TIP SOCKET REAMERS
Hole in reamer center permits water tube entry; no need to dismantle holder. 4 RW, Item No. 601-0004; 5 RW, Item No. 601-0005; 6 RW, Item 601-0006; 7 RW, Item No. 601-0007.

TUFFCAP SOCKET REAMERS
To ream or dress sockets to hold male caps. 4 RW, Item No. 601-0014; 5 RW, Item No. 601-0015; 6 RW, Item No. 601-0016.


TIP DRESSING TOOL
To remove mushroomed nose material on a pair of tips of 4 or 5 RW size, having pointed or dome noses. Other nose design dressers on special order. Dresser, Item No. 601-0102; Dresser cutter, Item No. 601-0103.



RADIUS TIP FILE
To restore original contours of welding tips use this two-inch radius file. Item No. 601-0120.

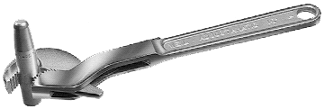

WELDING TIP EXTRACTORS

No. 4 RW, EX-1, Item No. 601-0201

No. 5 RW, EX-2, Item No. 601-0202

No. 4 RW and 5 RW at opposite ends, EX-3, Item No. 601-0203

Large: EX-10-A, Item No. 601-0231

CLICK HERE For Information on TUFFCAP Extractors

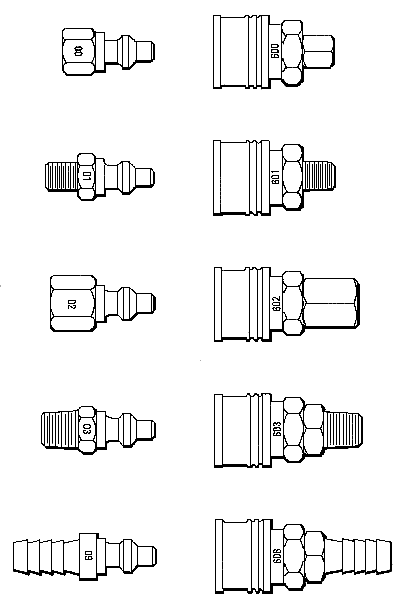

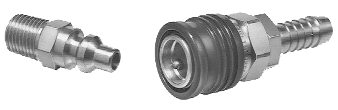

QUICK-CONNECT COUPLINGS with automatic shut-off
Use these couplings to make up efficient, trouble-free coolant systems. Any plug shown will mate with any socket shown. Always put the socket on the upstream side of a connection. Its built-in valve will automatically close upon disconnection.

1/8" NPT FEMALE PLUG

ITEM NO. 601-0300

1/8" NPT FEMALE SOCKET

ITEM NO. 601-0314

1/8" NPT MALE PLUG

ITEM NO. 601-0301

1/8" NPT MALE SOCKET

ITEM NO. 601-0315

1/4" NPT FEMALE PLUG

ITEM NO. 601-0302

1/4" NPT FEMALE SOCKET

ITEM NO. 601-0316

1/4" NPT MALE PLUG

ITEM NO. 601-0303

1/4" NPT MALE SOCKET

ITEM NO. 601-0317

3/8" HOSE PLUG

ITEM NO. 601-0309

3/8" HOSE SOCKET

ITEM NO. 601-0320
