TUFFALOY OFFSET HOLDERS



UNIVERSAL HOLDER ASSEMBLIES

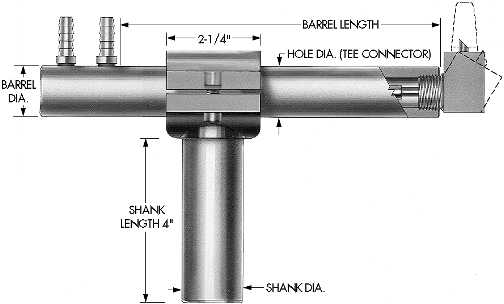

Holders, Tee Connectors, and Adapters may be assembled as shown, line by line in the table, to make up holder assemblies that will do spot welding in many otherwise inaccessible places. Goldcrown® (ejector-type) holders may be used in place of the non-ejector holders listed. The Tee Connector is Class 3 RWMA alloy.

EJECTOR STYLE ADAPTER HOLDERS

 HOLDERS
TEE CONNECTORS
ADAPTERS
Barrel Dia.
Barrel Length
Description
Item No.
Hole Dia.
Shank Dia.
Description
Item No.
 Tip Socket
Angle Degrees
Description
Ejector Adapter
1-1/4 8 N-08085-A 325-0295 1-1/4 1 T-1-1 192-1100
Various
1-1/4 8 N-10085-A 325-0295 1-1/4 1 T-1 192-1000 4RW 90 AD-584-90
1-1/4 8 N-10085-A 325-0295 1-1/4 1 T-1 192-1000 4RW 30 AD-584-30
1-1/4 8 N-10085-A 325-0295 1-1/4 1-1/4 T-125 192-1250 5RW 90 AD-585-90 AD-585-90E
1-1/4 8 N-10085-A 325-0295 1-1/4 1-1/4 T-125 192-1250 5RW 30 AD-585-30
1-1/4 8 N-10085-A 325-0295 1-1/4 1-1/4 T-125 192-1250 6RW 90 AD-586-90
1-1/2 8 N-12085-A 325-0375 1-1/2 1-1/2 T-15 192-1500 5RW 90 AD-585-90 AD-585-90E
1-1/2 8 N-12085-A 325-0375 1-1/2 1-1/2 T-15 192-1500 5RW 30 AD-585-30
1-1/2 8 N-12085-A 325-0375 1-1/2 1-1/2 T-15 192-1500 6RW 90 AD-586-90
