Equipment - VIsual Water Flow Indicators



Visual Flow Indicator Components

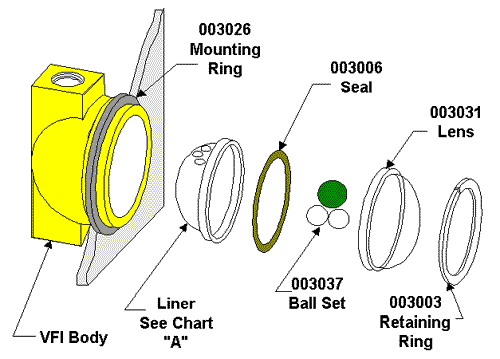

Exploded View of VFI Component Parts
Photo of VFI Components
Size Operating Range Assembly # Liner #
1/4-inch NPT .4 - 4 GPM 003048 003007
3/8-inch NPT 1.5 - 11 GPM 003049 003007
1/2-inch NPT 2.5 - 18 GPM 003050 003007
3/4-inch NPT 3 -30 GPM 003051 003008
1-inch NPT 5 - 45 GPM 003054 003008

A Closer look at the VFI Components

Pressure Drop Chart
