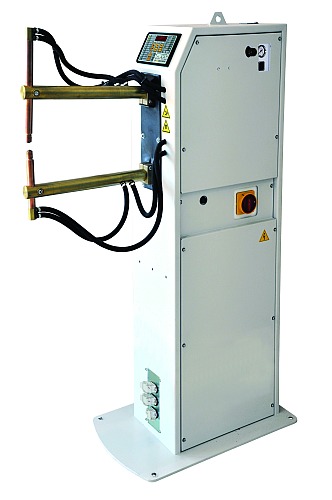

Pneumatic spot welders - Items 4645N-4649N - 16-25 kVA

TECNA spot welders are designed to meet every need of spot welding.

The new stationary ergonomic frame designed by TECNA helps to facilitate the operator's work.

The control unit has been positioned frontally to allow the operator to view the welding data even during the working cycle.

The pneumatic commands and the compressed air pressure gauge have been placed at the top for easier adjustment and reading.

MAIN WELDER FEATURES

  • Arms adjustable in length allowing a better working flexibility.
  • Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting.
  • Adjustable electrode stroke.
  • Epoxy resin coated transformer.
  • Water-cooled transformer, arms and electrodes.
  • Microprocessor control unit TECNA TE101.
  • The air operated lubrication free cylinder eliminates oil mist.
  • Electrode force adjustment with air filter reducer with gauge.
  • Semi-automatic drainage system.
  • Electrode speed control valves, shock absorber for cylinder's end of stroke and air discharge silencers.
  • Two-stage electric foot pedal, that besides its normal use in automatic and single spot mode, allows the operator to bring the pieces together and to weld them only when correctly positioned.
  • Pre-arrangement for the connection of a second electric two-stage foot pedal item 70284.
  • The addition of the second foot pedal allows to recall two different adjustments of time- current. This function is helpful when different kinds of welding are to be performed on the same piece.

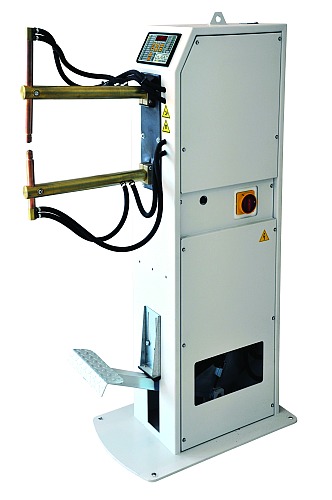

Foot operated spot welders - Items 4640N-4644N - 16-25 kVA

TECNA spot welders are designed to meet every need of spot welding.

The new stationary ergonomic frame designed by TECNA helps to facilitate the operator's work.

The control unit has been positioned frontally to allow the operator to view the welding data even during the working cycle.

The pneumatic commands and the compressed air pressure gauge have been placed at the top for easier adjustment and reading.

MAIN WELDER FEATURES

  • Arms adjustable in length allowing a better working flexibility.
  • Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting.
  • Adjustable electrode stroke.
  • Epoxy resin coated transformer.
  • Water-cooled transformer, arms and electrodes.
  • Microprocessor control unit TECNA TE101.

Adjustable electrode force; a microswitch starts the welding cycle when the desired pre-set value is reached. The foot pedal is adjustable in length.

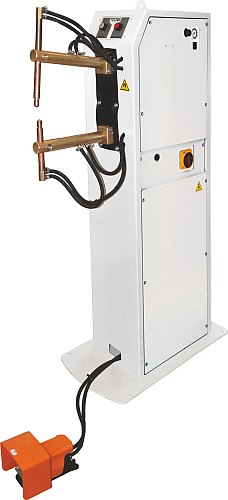

Pneumatic inverter spot welders - Items 6012-6013 - 25 kVA

The inverter technology, which these machines are provided with, allows a higher welding quality, an extreme precision in time and current and a reduction in costs, installation ones included.

MAIN WELDER FEATURES

  • Arms adjustable in length allowing a better working flexibility.
  • Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting.
  • Adjustable electrode stroke.
  • Epoxy resin coated transformer.
  • Water-cooled transformer, arms and electrodes.
  • Microprocessor control unit TECNA TE850.
  • The air operated lubrication free cylinder eliminates oil mist.
  • Electrode force adjustment with air filter reducer with gauge.
  • Electrode speed control valves, shock absorber for cylinder's end of stroke and air discharge silencers.

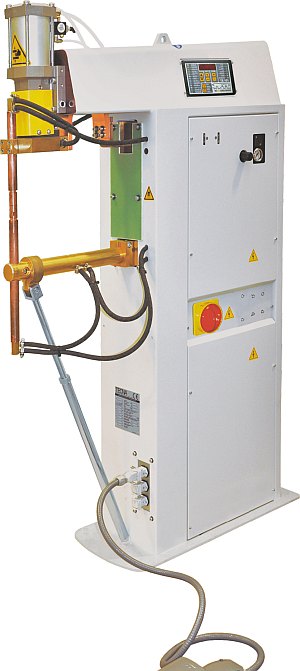

Spot welders - Items 4665N-4668N - 35-50 kVA

TECNA spot welders are designed to meet every need of spot welding. The new stationary ergonomic frame designed by TECNA helps to facilitate the operator's work. The control unit has been positioned frontally to allow the operator to view the welding data even during the working cycle. The pneumatic commands and the compressed air pressure gauge have been placed at the top for easier adjustment and reading.

MAIN WELDER FEATURES

  • Chrome-copper electrode-holders for heavy duty and long life, designed for both straight and angled fitting.
  • Water-cooled epoxy resin coated transformer.
  • Water-cooled arms, electrodes and electrode-holders.
  • Microprocessor control unit TECNA TE101.
  • USB Port for data storage (only with TE550).
  • The air operated lubrication free cylinder eliminates oil mist.
  • Protected filter assembly with gauge.
  • Two-stage electric foot-pedal for clamping and welding pieces only if correctly positioned.
  • Pre-connected for additional electric foot-pedal for the direct recalling of welding program No.2. This function is helpful when different kinds of welding are to be performed on the same piece.
  • Adjustable electrodes stroke for max. working rate.

ITEMS 4665N-4666N

  • Arms: gap 280 mm, depth 400 mm.
  • Cylinder with chrome-plated stem for heavy duty and long life.
  • Cylinder with double stroke with hand control.

ITEMS 4667N-4668N

  • Arms: gap 280 mm, depth 500 mm
  • Cylinder with chrome-plated stem for heavy duty and long life.
  • Cylinder with double stroke with hand control

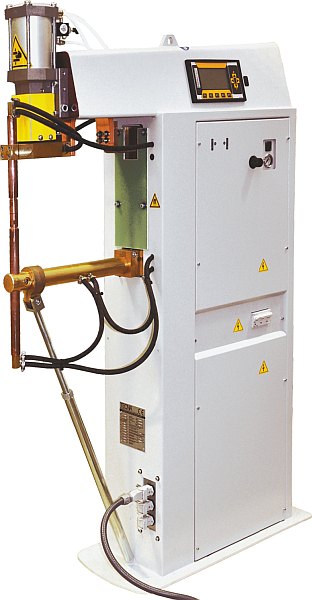

Spot Welders - Items 6022-6023 - 30 kVA

TECNA spot welders are designed to meet every need of spot welding.

The frame of this line of machines has been designed by TECNA so to facilitate the operator's work.

The control unit, the pneumatic commands and the pressure gauge have been placed at the top so to enable the operator to use them smoothly.

The inverter technology, which these machines are provided with, allows a higher welding quality, an extreme precision in time and current and a reduction in costs, installation ones included.

The welding time is adjusted in milliseconds thus allowing the best set-up.

The welding current is supplied continuously and constantly and is not affected by the dimensions of the welding circuit.

MAIN TECHNICAL FEATURES

  • Chrome-copper electrode-holders for heavy duty and long life, designed for both straight and angled fitting on the arm.
  • Water-cooled transformer, electrode-holders and electrodes; transformer windings coated in epoxy resin.
  • Microprocessor control unit TE750 provided with wide screen.
  • (optional) USB port for data storage.
  • Lubrication free cylinder and pneumatic components which eliminate oil mist.
  • Two-stage electric foot-pedal for clamping and welding pieces only if correctly positioned.
  • Pre-connection for an additional electric foot-pedal for the direct recalling of welding program No. 2. This function is helpful when different kinds of welding are to be performed on the same piece.

LINEAR ACTION CONFIGURATION

Arms: gap 280 mm, either 400 mm or 500 mm depth according to the machine model. Double-stroke cylinder with hand control.

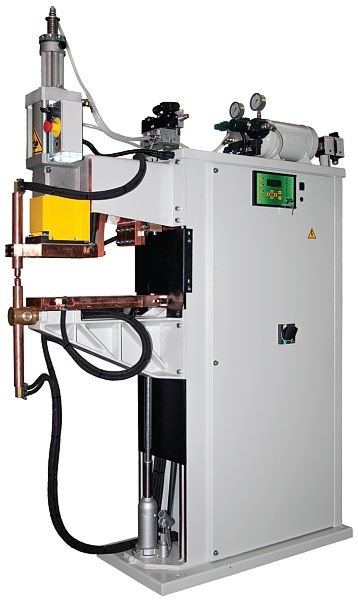

Spot and projection welders - Items 6121N-6129N - 90-200 kVA

Versatile welders designed as to perform both spot and projection welding.

The mechanical frame of these machines has been designed so to minimize the flexions. Also, this body, combined with the inverter technology, allows to obtain high quality welding.

The six working modes provided by the TE700 control unit allow to choose the most suitable welding mode for the material to be welded. It is also possible to implement a proportional valve in the pneumatic circuit thus ensuring a high work pressure precision and constancy. The proportional valve is programmable directly from the control unit and allows to match to each program its relevant pressure value.

The inverter technology, which these machines are provided with, allows a higher welding quality, an extreme precision in time and current and a reduction in costs, installation ones included. The welding time is adjusted in milliseconds thus allowing the best set-up. The welding current is supplied continuously and constantly and is not affected by the dimensions of the welding circuit.

MAIN TECHNICAL FEATURES

  • Medium frequency welders, designed to obtain high quality welding.
  • Modular design of mechanical structure, arms, brackets, cylinders.
  • Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.
  • Lubrication free pneumatic components to eliminate oil mist and to protect the environment.
  • Adjustable double-stroke cylinder with key control. Alternatively, it may be managed by a pneumatic pedal.
  • Electrodes descent without pressure for both maintenance and set-up.
  • Built-in compressed air filter unit and tank. Compressed air disconnection device.
  • Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.
  • Two stage electric foot control for clamping and welding pieces only if correctly positioned.
  • Pre-setting for additional double stage electric foot switch connection for the direct recalling of a different welding program.
  • Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models).
  • Emergency push-button to stop the machine immediately.
  • Protection with automatic circuit breaker.
  • Flow-switch which stops the machine if the cooling water does not flow and valve for blocking the water-cooling flow when the machine is off.
  • (optional) USB port for data storage.
  • Pneumatic circuit equipped with low force squeeze (optional), particularly suitable when projection welding and when spot welding delicate parts.
  • Position sensor (optional) which allows to measure the initial thickness of the material to be welded and to verify the presence and the dimensional accuracy of the materials to be welded before welding. It also allows to measure the penetration of the electrodes at the end of the welding process. It is also possible to stop the current flow once the set penetration value has been achieved.
