Equipment - Water Coolers

Water Coolers

Setting the standard of quality in the water cooling industry. Rugged and reliable, the complete line features coolers for Welding, Plasma, Resistance, Electro-Slag, Induction as well as other processes which require water cooling.


Models

Product # R1000-XXX, R1000 Cooling System

Sepcifications:

  • Factory set at 50 psi adjustable to 80 psi
  • 3 gallon reservoir
  • 115 or 230 VAC / 1 ph-50 / 60 Hz
  • 5.6 / 2.8 amp: 60 Hz
  • 14,000 BTU
  • Dimensions: 23"L x 11 "W x 14.75"H
  • 1/4" FPT (water in / out) with 5/8" LH Standard Inert Gas Fitting
  • 8 foot power cord
  • Visible water level and flow sight glass
  • Thermal overload
  • Net weight:42 lbs / 19 kg
  • Foam packed for UPS shipment

R1000:Rotary GEAR Pump (only)

  • 1.8 gpm at 50 psi
  • Built in by-pass to tank
  • Rebuildable Pump (Repair Kit Product No. P5001)

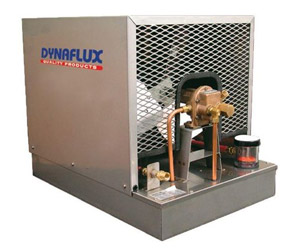

Product # R1100X-XXX, R1100 V/G Cooling System

Sepcifications:

  • Factory set at 50 psi adjustable to 80 psi
  • 3 gallon reservoir
  • 115 or 230 VAC / 1 ph-50 / 60 Hz
  • 5.6 / 2.8 amp: 60 Hz
  • 15,000 BTU
  • Dimensions:23" L x 11" W x 14.75" H
  • 1/4" FPT(water in /out) with 5/8"LH Standard Inert Gas Fitting
  • Net weight: 42 lbs/19 kg
  • Foam packed for UPS shipment

R1100 G: Rotary GEAR Pump

  • 1.8 gpm at 50 psi
  • Built in by-pass to tank.

R1100 V: Rotary VANE Pump

  • 1.7 gpm at 50 psi

Product # R1200X-XXX, R1200 V/G Cooling System

Sepcifications:

  • Factory set at 50 psi adjustable to 80 psi
  • 10 gallon reservoir
  • 115 or 230 VAC / 1 ph-50 / 60 Hz
  • 5.6 / 2.8 amp: 60 Hz
  • 15,000 BTU
  • Dimensions:23" L x 11" W x 20" H
  • 1/4 FPT(water in /out) with 5/8"LH Standard Inert Gas Fitting
  • Net weight: 48 lbs/22 kg
  • Foam packed for UPS shipment

R1200 G: Rotary GEAR Pump

  • 1.8 gpm at 50 psi
  • Built in by-pass to tank.

R1200 V: Rotary VANE Pump

  • 1.7 gpm at 50 psi

Product # R2000-XXX/X, R2000 Cooling System

Sepcifications:

  • Factory set at 50 psi adjustable to 100 psi
  • 6 gallon reservoir (15 gallon available)
  • 115 VAC 50 / 60 Hz 1 ph
  • 230 VAC 50 / 60 Hz 1 ph
  • 13.4 / 6.7 amp:60 Hz 1 ph
  • 230 / 190 VAC 50 / 60 Hz 3 ph
  • 460 / 380 VAC 50/60 Hz 3 ph
  • 2.6 / 1.3 amp:60 Hz3 ph
  • 30,000 BTU
  • Dimensions: 23"L x 16"W x 19.5"H
  • 1/4" FPT (water in / out) with 5/8" LH Standard Inert Gas Fitting
  • 8 foot power cord. 1 ph only
  • Visible water level / water flow sight glass
  • Thermal overload
  • Net weight: 68 lbs/31 kg
  • Foam packed for UPS shipment

R2000: Rotary GEAR Pump (only)

  • 3.5 gpm at 50 psi
  • Built in by-pass to tank
  • Rebuildable Pump (Repair Kit Product No. P2001)

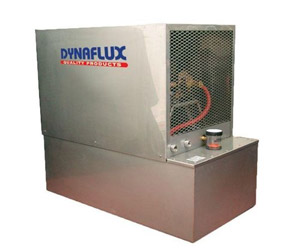

Product # R4000-XXX/X, R4000 Cooling System

Sepcifications:

  • Factory set at 50 psi adjustable to 100 psi
  • 25 gallon reservoir
  • 115 / 230 VAC 50 / 60 Hz 1 ph
  • 20.4 / 10.2 amp : 60 Hz 1 ph
  • 230 / 190 VAC 50 / 60 Hz 3 ph
  • 460 / 380 VAC 50 / 60 Hz 3 ph
  • 5.4 / 2.7 amp: 60 Hz 3 ph
  • 55,000 BTU
  • Dimensions: 36"L x 19.5"W x 35"H
  • 1/2" FPT SS Pipe - water in and out
  • Visible water level / water flow sight glass
  • Net weight: 170 lbs / 77 kg

R4000: Rotary GEAR Pump (only)

  • 10.0 gpm at 50 psi
  • Built in by-pass to tank
  • Rebuildable Pump (Repair Kit No. P4018)
