Equipment - VIsual Water Flow Indicators

Recommended Operating Ranges
1/4" NPT 3/8" NPT 1/2" NPT 3/4" NPT 1" NPT
.4 - 4 GPM 1.5 - 11 GPM 2.5 - 18 GPM 3 - 30 GPM 5 - 45 GPM
Maximum Pressure Rating: 150 PSI @ 150 Degrees F

A Closer look at the VFI Components

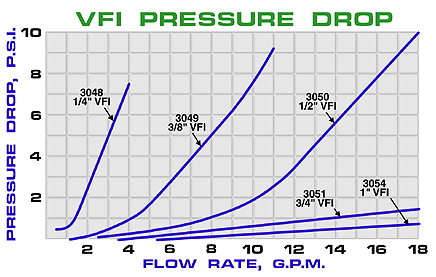

Pressure Drop Chart
