EN1000 - CASC

Entron Controls, Inc.

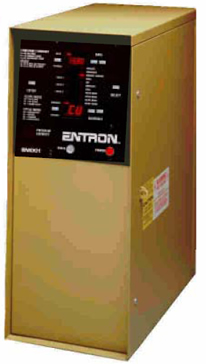

Controls for Resistance Welding EN1000 Cascade/Multi-Valve Controls

  • Spot Sequence
  • Pulsation Sequence
  • Up & Down-Slope
  • Quench/Temper
  • Forge Delay
  • Multiple Weld/Multiple Current
  • Preheat/Postheat
  • External Schedule Select
  • Process & Error Outputs
  • Seam Sequence
  • 100 Unique Schedules
  • Chained & Successive Modes
  • Repeat & Non-Repeat
  • Weld & Valve Control Relays
  • 8/16 Valve Output Available
  • Multiple Weld Programming
  • Multiple Job Set-Ups
  • Easily Programmed
  • Program Only the Functions
  • Up to 8 SCRs

Unique to ENTRON. All EN1000 Cascade/Multi-Valve Controls and cabinets feature provisions for field installation or change of circuit breakers.


  • Functional Flexibility
    Performs both Cascade and Multi- Valve operations. Store as many as 13 parameters in each of 100 unique schedules.
  • Simple to Program
    Push buttons and a short three-step procedure make easy work of programming any possible welding schedule.
  • New Design Reduces Cost
    Simplified design significantly reduces production costs which are passed on to you.
  • Quality Tested to Performance Extremes
    Each unit is tested to its maximum capability to assure performance at customary operating levels. ENTRON - the only resistance welding controls with the excellent performance history.
  • Design Simplicity
    Design simplicity is the key to our ability to manufacture the highest quality weld control with the best delivery, least maintenance, and lowest out-of-warranty service in the industry.
  • Field Expandable
    ENTRON can provide retrofit controls suitable for any manufacturer's controls of any age, type or sequence for installation in the field.
  • Vault Closing Door Mechanism
    All cabinet doors equipped with vault locking mechanism to ensure security
  • Flexible Application
    EN1000 Cascade/Multi-Valve Controls can be applied to mat welders, pass-through welders, special machines, robotic equipment for welding materials of unequal thickness and coated materials.
  • Multiple Cabinet Options
    Available in D, T, L, H, G, U cabinet styles with front or sidemounted control panels.
